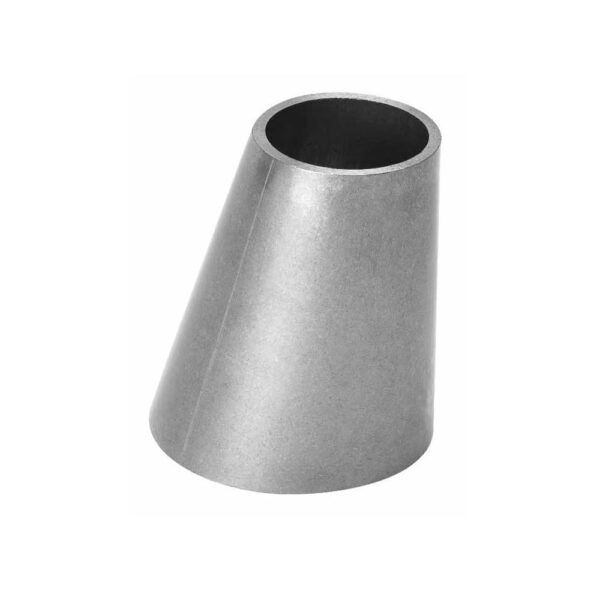

Riduzione inox Eccentrica a Saldare Grezza
Codice prodotto G39C
Dimensioni DA DIN 10 A DIN 150 – DA 1” A 4” (NORMA SMS, BS-RJT, IDF-ISS, CLAMP) – DA DN 3/4” A DN 12” GAS ISO (NORMA EN 10253 – DIN 2605)
Materiale AISI 304/304L 1.4301/1.4307 – AISI 316/316L 1.4401/1.4404
Pressione max esercizio 25/16 BAR
Ricavato da TUBO
Certificazione MOCA disponibile
Richiedi preventivo
Scegli l'articolo e la quantità da quotare:
Altre dimensioni/norme disponibili su richiesta.
Tabella articoli
| Cod. Art. | Descrizione | Diametro | Materiale | Norma |
|---|---|---|---|---|
| 4CE61XU0 | RID.ECC A S. GRE. DIN 18X12 304 | 18X12 | AISI 304/304L | DIN |
| 4CE61XI3 | RID. ECC. A S. GR. DIN 22X18 304 | 22X18 | AISI 304/304L | DIN |
| 6CE61XI3 | RID. ECC. A S. GR. DIN 22X18 316 | 22X18 | AISI 316/316L | DIN |
| 6CE61XI1 | RID. ECC. A S. GR. 25,4X12,7 316 | 25.4X12.7 | AISI 316/316L | SMS |
| 4CE61X02 | RID. EC. A S. GR. 26,9X17,2 S2 304 | 26.9X17.2 | AISI 304/304L | GAS |
| 6CE61X02 | RID. EC. A S. GR. 26,9X17,2 S2 316 | 26.9X17.2 | AISI 316/316L | GAS |
| 4CE61X04 | RID. EC. A S. GR. 26,9X21,3 S2 304 | 26.9X21.3 | AISI 304/304L | GAS |
| 6CE61X04 | RID. E. A S. GR. 26,9X21,3 S2 316 | 26.9X21.3 | AISI 316/316L | GAS |
| 6CE61XG6 | RID. ECC. A S. GR. DIN 28X18 316 | 28X18 | AISI 316/316L | DIN |
| 4CE61XS1 | RID. ECC. A S. GR. DIN 28X22 304 | 28X22 | AISI 304/304L | DIN |
| 4CE61X06 | RID. EC. A S. GR. 33,7X17,2 S2 304 | 33.7X17.2 | AISI 304/304L | GAS |
| 4CE61X08 | RID. EC. A S. GR. 33,7X21,3 S2 304 | 33.7X21.3 | AISI 304/304L | GAS |
| 6CE61X08 | RID. EC. A S. GR 33,7X21,3 S2 316 | 33.7X21.3 | AISI 316/316L | GAS |
| 6CE61X09 | RID. EC. A S. GR 33,7X21,3 S3 316 | 33.7X21.3 | AISI 316/316L | GAS |
| 4CE61X10 | RID. EC. A S. GR. 33,7X26,9 S2 304 | 33.7X26.9 | AISI 304/304L | GAS |
| 6CE61X10 | RID. EC. A S. GR 33,7X26,9 S2 316 | 33.7X26.9 | AISI 316/316L | GAS |
| 6CE61X11 | RID. EC. A S. GR 33,7X26,9 S3 316 | 33.7X26.9 | AISI 316/316L | GAS |
| 4CE61XU4 | RID. ECC. A S. GRE. DIN 34X18 304 | 34X18 | AISI 304/304L | DIN |
| 6CE61XU4 | RID. ECC. A S. GRE. DIN 34X18 316 | 34X18 | AISI 316/316L | DIN |
| 4CE61XD7 | RID. ECC. A S. GR. DIN 34X22 304 | 34X22 | AISI 304/304L | DIN |
| 6CE61XD7 | RID.ECC.S.GR. DIN 34X22 S2 316 | 34X22 | AISI 316/316L | DIN |
| 4CE61X12 | RID. ECC. A S. GR. DIN 34X28 304 | 34X28 | AISI 304/304L | DIN |
| 6CE61XH8 | RID. ECC. A S. GR. 38,1X19,05 316 | 38.1X19.05 | AISI 316/316L | SMS |
| 6CE61XG4 | RID. ECC. A S. GR. 38,1X25,4 316 | 38.1X25.4 | AISI 316/316L | SMS |
| 4CE61XA8 | RID. ECC. A S. GR. DIN 40X22 304 | 40X22 | AISI 304/304L | DIN |
| 4CE61X13 | RID. ECC. A S. GR. DIN 40X28 304 | 40X28 | AISI 304/304L | DIN |
| 4CE61X14 | RID. ECC. A S. GR. DIN 40X34 304 | 40X34 | AISI 304/304L | DIN |
| 4CE61X15 | RID. EC. A S. GR 42,4X21,3 S2 304 | 42.4X21.3 | AISI 304/304L | GAS |
| 6CE61X15 | RID. EC. A S. GR 42,4X21,3 S2 316 | 42.4X21.3 | AISI 316/316L | GAS |
| 4CE61X17 | RID. EC. A S. GR 42,4X26,9 S2 304 | 42.4X26.9 | AISI 304/304L | GAS |
| 6CE61X17 | RID. EC. A S. GR 42,4X26,9 S2 316 | 42.4X26.9 | AISI 316/316L | GAS |
| 4CE61X19 | RID. EC. A S. GR 42,4X33,7 S2 304 | 42.4X33.7 | AISI 304/304L | GAS |
| 6CE61X19 | RID. EC. A S. GR 42,4X33,7 S2 316 | 42.4X33.7 | AISI 316/316L | GAS |
| 4CE61X20 | RID. EC. A S. GR 42,4X33,7 S3 304 | 42.4X33.7 | AISI 304/304L | GAS |
| 4CE61X92 | RID. EC. A S. GR 48,3X21,3 S2 304 | 48.3X21.3 | AISI 304/304L | GAS |
| 6CE61X92 | RID. EC. A S. GR 48,3X21,3 S2 316 | 48.3X21.3 | AISI 316/316L | GAS |
| 4CE61XD5 | RID. EC. A S. GR 48,3X21,3 S3 304 | 48.3X21.3 | AISI 304/304L | GAS |
| 4CE61X21 | RID. EC. A S. GR 48,3X26,9 S2 304 | 48.3X26.9 | AISI 304/304L | GAS |
| 6CE61X21 | RID. EC. A S. GR 48,3X26,9 S2 316 | 48.3X26.9 | AISI 316/316L | GAS |
| 4CE61X22 | RID. EC. A S. GR 48,3X26,9 S3 304 | 48.3X26.9 | AISI 304/304L | GAS |
| 4CE61X23 | RID. EC. A S. GR 48,3X33,7 S2 304 | 48.3X33.7 | AISI 304/304L | GAS |
| 6CE61X23 | RID. EC. A S. GR 48,3X33,7 S2 316 | 48.3X33.7 | AISI 316/316L | GAS |
| 4CE61X24 | RID. EC. A S. GR 48,3X33,7 S3 304 | 48.3X33.7 | AISI 304/304L | GAS |
| 4CE61X25 | RID. EC. A S. GR 48,3X42,4 S2 304 | 48.3X42.4 | AISI 304/304L | GAS |
| 6CE61X25 | RID. EC. A S. GR 48,3X42,4 S2 316 | 48.3X42.4 | AISI 316/316L | GAS |
| 4CE61X26 | RID. EC. A S. GR 48,3X42,4 S3 304 | 48.3X42.4 | AISI 304/304L | GAS |
| 6CE61X26 | RID. EC. A S. GR 48,3X42,4 S3 316 | 48.3X42.4 | AISI 316/316L | GAS |
| 4CE61XA3 | RID. EC. A S. GR SMS 50,8X25,4 304 | 50.8X25.4 | AISI 304/304L | SMS |
| 6CE61XA3 | RID. EC. A S. GR SMS 50,8X25,4 316 | 50.8X25.4 | AISI 316/316L | SMS |
| 6CE61XA0 | RID. ECC. A S. GR. 50,8X38,1 316 | 50.8X38.1 | AISI 316/316L | SMS |
| 4CE61XZ6 | RID. ECC. A S. GRE. DIN 52X22 304 | 52X22 | AISI 304/304L | DIN |
| 6CE61XZ6 | RID. ECC. A S. GRE. DIN 52X22 316 | 52X22 | AISI 316/316L | DIN |
| 4CE61X27 | RID. ECC. A S. GR. DIN 52X28 304 | 52X28 | AISI 304/304L | DIN |
| 6CE61X27 | RID. ECC. A S. GR. DIN 52X28 316 | 52X28 | AISI 316/316L | DIN |
| 4CE61X28 | RID. ECC. A S. GR. DIN 52X34 304 | 52X34 | AISI 304/304L | DIN |
| 6CE61X28 | RID.ECC.S.GR. DIN 52X34 S2 316 | 52X34 | AISI 316/316L | DIN |
| 4CE61X29 | RID. ECC A S. GR DIN 52X40 H36 304 | 52X40 | AISI 304/304L | DIN |
| 6CE61X29 | RID.ECC.S.GR. DIN 52X40 S2 316 | 52X40 | AISI 316/316L | DIN |
| 4CE61X93 | RID. EC. A S. GR 60,3X21,3 S2 304 | 60.3X21.3 | AISI 304/304L | GAS |
| 6CE61X93 | RID. EC. A S. GR 60,3X21,3 S2 316 | 60.3X21.3 | AISI 316/316L | GAS |
| 4CE61X94 | RID. E. A S. GR. 60,3X26,9 S2 304 | 60.3X26.9 | AISI 304/304L | GAS |
| 6CE61X94 | RID. E. A S. GR. 60,3X26,9 S2 316 | 60.3X26.9 | AISI 316/316L | GAS |
| 4CE61X30 | RID. EC. A S. GR 60,3X33,7 S2 304 | 60.3X33.7 | AISI 304/304L | GAS |
| 6CE61X30 | RID. EC. A S. GR 60,3X33,7 S2 316 | 60.3X33.7 | AISI 316/316L | GAS |
| 4CE61X31 | RID. EC. A S. GR 60,3X33,7 S3 304 | 60.3X33.7 | AISI 304/304L | GAS |
| 4CE61X32 | RID. EC. A S. GR 60,3X42,4 S2 304 | 60.3X42.4 | AISI 304/304L | GAS |
| 6CE61X32 | RID. EC. A S. GR 60,3X42,4 S2 316 | 60.3X42.4 | AISI 316/316L | GAS |
| 4CE61X34 | RID. EC. A S. GR 60,3X48,3 S2 304 | 60.3X48.3 | AISI 304/304L | GAS |
| 6CE61X34 | RID. EC. A S. GR 60,3X48,3 S2 316 | 60.3X48.3 | AISI 316/316L | GAS |
| 4CE61X35 | RID. EC. A S. GR 60,3X48,3 S3 304 | 60.3X48.3 | AISI 304/304L | GAS |
| 6CE61X35 | RID. EC. A S. GR 60,3X48,3 S3 316 | 60.3X48.3 | AISI 316/316L | GAS |
| 6CE61XE3 | RID. ECC. A S. GR. 63,5X25,4 316 | 63.5X25.4 | AISI 316/316L | SMS |
| 6CE61XD8 | RID.ECC.S.GR.SMS 63,5X38,1 S2 316 | 63.5X38.1 | AISI 316/316L | SMS |
| 6CE61XA4 | RID. EC. A S. GR SMS 63,5X50,8 316 | 63.5X50.8 | AISI 316/316L | SMS |
| 4CE61XU5 | RID. ECC. A S. GRE. DIN 70X28 304 | 70X28 | AISI 304/304L | DIN |
| 6CE61XU5 | RID. ECC. A S. GRE. DIN 70X28 316 | 70X28 | AISI 316/316L | DIN |
| 4CE61XD2 | RID. ECC. A S. GR. DIN 70X34 304 | 70X34 | AISI 304/304L | DIN |
| 6CE61XD2 | RID. ECC. A S. GR. DIN 70X34 316 | 70X34 | AISI 316/316L | DIN |
| 4CE61X36 | RID. ECC A S. GR DIN 70X40 H90 304 | 70X40 | AISI 304/304L | DIN |
| 6CE61X36 | RID.ECC.S.GR.DIN 70X40 S2 316 | 70X40 | AISI 316/316L | DIN |
| 4CE61X37 | RID. ECC. A S. GR. DIN 70X52 304 | 70X52 | AISI 304/304L | DIN |
| 6CE61X37 | RID. ECC. A S. GR. DIN 70X52 316 | 70X52 | AISI 316/316L | DIN |
| 6CE61XD3 | RID. EC. A S. GR 76,1X21,3 S2 316 | 76.1X21.3 | AISI 316/316L | GAS |
| 4CE61X95 | RID. EC. A S. GR 76,1X26,9 S2 304 | 76.1X26.9 | AISI 304/304L | GAS |
| 6CE61X95 | RID. EC. A S. GR 76,1X26,9 S2 316 | 76.1X26.9 | AISI 316/316L | GAS |
| 6CE61XS5 | RID. EC. A S. GR 76,1X26,9 S3 316 | 76.1X26.9 | AISI 316/316L | GAS |
| 4CE61X38 | RID. EC. A S. GR 76,1X33,7 S2 304 | 76.1X33.7 | AISI 304/304L | GAS |
| 6CE61X38 | RID. EC. A S. GR 76,1X33,7 S2 316 | 76.1X33.7 | AISI 316/316L | GAS |
| 6CE61XS2 | RID. EC. A S. GR. SMS 76,1X38,1 316 | 76.1X38.1 | AISI 316/316L | SMS |
| 4CE61X40 | RID. EC. A S. GR 76,1X42,4 S2 304 | 76.1X42.4 | AISI 304/304L | GAS |
| 6CE61X40 | RID. EC. A S. GR 76,1X42,4 S2 316 | 76.1X42.4 | AISI 316/316L | GAS |
| 4CE61X42 | RID. EC. A S. GR 76,1X48,3 S2 304 | 76.1X48.3 | AISI 304/304L | GAS |
| 6CE61X42 | RID. EC. A S. GR 76,1X48,3 S2 316 | 76.1X48.3 | AISI 316/316L | GAS |
| 4CE61X43 | RID. EC. A S. GR 76,1X48,3 S3 304 | 76.1X48.3 | AISI 304/304L | GAS |
| 6CE61X43 | RID. EC. A S. GR 76,1X48,3 S3 316 | 76.1X48.3 | AISI 316/316L | GAS |
| 4CE61X44 | RID. EC. A S. GR 76,1X60,3 S2 304 | 76.1X60.3 | AISI 304/304L | GAS |
| 6CE61X44 | RID. EC. A S. GR 76,1X60,3 S2 316 | 76.1X60.3 | AISI 316/316L | GAS |
| 4CE61XD4 | RID. EC. A S. GR SMS 76,2X50,8 304 | 76.2X50.8 | AISI 304/304L | SMS |
| 6CE61XD4 | RID. EC. A S. GR SMS 76,2X50,8 316 | 76.2X50.8 | AISI 316/316L | SMS |
| 6CE61XD9 | RID.EC. A S. GR. SMS 76,2X63,5 316 | 76.2X63.5 | AISI 316/316L | SMS |
| 4CE61X96 | RID. ECC. A S. GR. DIN 85X40 304 | 85X40 | AISI 304/304L | DIN |
| 6CE61X96 | RID.ECC.S.GR.DIN 85X40 S2 316 | 85X40 | AISI 316/316L | DIN |
| 4CE61X46 | RID. ECC. A S. GR. DIN 85X52 304 | 85X52 | AISI 304/304L | DIN |
| 6CE61X46 | RID. ECC. A S. GR. DIN 85X52 316 | 85X52 | AISI 316/316L | DIN |
| 4CE61X47 | RID. ECC. A S. GR. DIN 85X70 304 | 85X70 | AISI 304/304L | DIN |
| 4CE61X48 | RID. EC. A S. GR 88,9X33,7 S2 304 | 88.9X33.7 | AISI 304/304L | GAS |
| 6CE61X48 | RID. EC. A S. GR 88,9X33,7 S2 316 | 88.9X33.7 | AISI 316/316L | GAS |
| 4CE61X50 | RID. EC. A S. GR 88,9X42,4 S2 304 | 88.9X42.4 | AISI 304/304L | GAS |
| 6CE61X50 | RID. EC. A S. GR 88,9X42,4 S2 316 | 88.9X42.4 | AISI 316/316L | GAS |
| 4CE61X52 | RID. EC. A S. GR 88,9X48,3 S2 304 | 88.9X48.3 | AISI 304/304L | GAS |
| 6CE61X52 | RID. EC. A S. GR 88,9X48,3 S2 316 | 88.9X48.3 | AISI 316/316L | GAS |
| 4CE61X53 | RID. EC. A S. GR 88,9X48,3 S3 304 | 88.9X48.3 | AISI 304/304L | GAS |
| 4CE61X54 | RID. EC. A S. GR 88,9X60,3 S2 304 | 88.9X60.3 | AISI 304/304L | GAS |
| 6CE61X54 | RID. EC. A S. GR 88,9X60,3 S2 316 | 88.9X60.3 | AISI 316/316L | GAS |
| 4CE61X55 | RID. EC. A S. GR 88,9X60,3 S3 304 | 88.9X60.3 | AISI 304/304L | GAS |
| 4CE61X56 | RID. EC. A S. GR 88,9X76,1 S2 304 | 88.9X76.1 | AISI 304/304L | GAS |
| 6CE61X56 | RID. EC. A S. GR 88,9X76,1 S2 316 | 88.9X76.1 | AISI 316/316L | GAS |
| 4CE61X57 | RID. EC. A S. GR 88,9X76,1 S3 304 | 88.9X76.1 | AISI 304/304L | GAS |
| 6CE61X57 | RID. EC. A S. GR 88,9X76,1 S3 316 | 88.9X76.1 | AISI 316/316L | GAS |
| 6CE61XH0 | RID. EC. A S. GR. DIN 101,6X34 316 | 101.6X34 | AISI 316/316L | DIN |
| 6CE61XI4 | RID. EC. A S. GR 101,6X48,3 S2 316 | 101.6X48.3 | AISI 316/316L | GAS |
| 6CE61XH3 | RID. EC. A S. GR SMS 101,6X50,8 316 | 101.6X50.8 | AISI 316/316L | SMS |
| 4CE61X99 | RID.ECC.S.GR.DIN 101X52 S2 304 | 101.6X52 | AISI 304/304L | DIN |
| 6CE61XG2 | RID.ECC.S.GR.DIN 101,6X52 S2 316 | 101.6X52 | AISI 316/316L | DIN |
| 6CE61XI5 | RID. EC. A S. GR SMS 101,6X63,5 316 | 101.6X63.5 | AISI 316/316L | SMS |
| 4CE61XB5 | RID. EC. A S. GR. DIN 101,6X70 304 | 101.6X70 | AISI 304/304L | DIN |
| 6CE61XB5 | RID. EC. A S. GR. DIN 101,6X70 316 | 101.6X70 | AISI 316/316L | DIN |
| 6CE61XB3 | RID. EC. A S. GR SMS 101,6X76,2 316 | 101.6X76.2 | AISI 316/316L | SMS |
| 4CE61XB4 | RID. EC. A S. GR. DIN 101,6X85 304 | 101.6X85 | AISI 304/304L | DIN |
| 6CE61XB4 | RID. EC. A S. GR. DIN 101,6X85 316 | 101.6X85 | AISI 316/316L | DIN |
| 4CE61X58 | RID. ECC. A S. GR. DIN 104X52 304 | 104X52 | AISI 304/304L | DIN |
| 4CE61X5A | RID.ECC.S.GR.DIN 104X70 S2 H.70 304 | 104X70 | AISI 304/304L | DIN |
| 6CE61X59 | RID.ECC.S.GR.DIN 104X70 S2 316 | 104X70 | AISI 316/316L | DIN |
| 4CE61X60 | RID. ECC. A S. GR. DIN 104X85 304 | 104X85 | AISI 304/304L | DIN |
| 6CE61X60 | RID. ECC. A S. GR. DIN 104X85 316 | 104X85 | AISI 316/316L | DIN |
| 4CE61XC6 | RID. EC. A S. GR 114,3X42,4 S2 304 | 114.3X42.4 | AISI 304/304L | GAS |
| 6CE61XC6 | RID. EC. A S. GR 114,3X42,4 S2 316 | 114.3X42.4 | AISI 316/316L | GAS |
| 4CE61X61 | RID. EC. A S. GR 114,3X48,3 S2 304 | 114.3X48.3 | AISI 304/304L | GAS |
| 6CE61X61 | RID. EC. A S. GR 114,3X48,3 S2 316 | 114.3X48.3 | AISI 316/316L | GAS |
| 6CE61X62 | RID. EC. A S. GR 114,3X48,3 S3 316 | 114.3X48.3 | AISI 316/316L | GAS |
| 4CE61X63 | RID. EC. A S. GR 114,3X60,3 S2 304 | 114.3X60.3 | AISI 304/304L | GAS |
| 6CE61X63 | RID. EC. A S. GR 114,3X60,3 S2 316 | 114.3X60.3 | AISI 316/316L | GAS |
| 4CE61X64 | RID. EC. A S. GR 114,3X60,3 S3 304 | 114.3X60.3 | AISI 304/304L | GAS |
| 4CE61X65 | RID. EC. A S. GR 114,3X76,1 S2 304 | 114.3X76.1 | AISI 304/304L | GAS |
| 6CE61X65 | RID. EC. A S. GR 114,3X76,1 S2 316 | 114.3X76.1 | AISI 316/316L | GAS |
| 6CE61X66 | RID. EC. A S. GR 114,3X76,1 S3 316 | 114.3X76.1 | AISI 316/316L | GAS |
| 4CE61X67 | RID. EC. A S. GR 114,3X88,9 S2 304 | 114.3X88.9 | AISI 304/304L | GAS |
| 6CE61X67 | RID. EC. A S. GR 114,3X88,9 S2 316 | 114.3X88.9 | AISI 316/316L | GAS |
| 4CE61X68 | RID. EC. A S. GR 114,3X88,9 S3 304 | 114.3X88.9 | AISI 304/304L | GAS |
| 6CE61X68 | RID. EC. A S. GR 114,3X88,9 S3 316 | 114.3X88.9 | AISI 316/316L | GAS |
| 4CE61XC9 | RID. EC. S. GR. 129X52 L=127 S2 304 | 129X52 | AISI 304/304L | DIN |
| 6CE61XG8 | RID. ECC. A S. GR. DIN 129X70 316 | 129X70 | AISI 316/316L | DIN |
| 4CE61X91 | RID. ECC. A S. GR. DIN 129X85 304 | 129X85 | AISI 304/304L | DIN |
| 6CE61X91 | RID. ECC. A S. GR. DIN 129X85 316 | 129X85 | AISI 316/316L | DIN |
| 4CE61XF6 | RID. EC. A S. GR. DIN 129X101,6 304 | 129X101.6 | AISI 304/304L | DIN |
| 6CE61XF6 | RID. EC. A S. GR. DIN 129X101,6 316 | 129X101.6 | AISI 316/316L | DIN |
| 6CE61XC2 | RID. ECC. A S. GR. DIN 129X104 316 | 129X104 | AISI 316/316L | DIN |
| 6CE61XC4 | RID. ECC. A S. GR. 129X114,3 S2 316 | 129X114.3 | AISI 316/316L | GAS |
| 4CE61X69 | RID. EC. A S. GR 139,7X60,3 S2 304 | 139X60.3 | AISI 304/304L | GAS |
| 6CE61X69 | RID. EC. A S. GR 139,7X60,3 S2 316 | 139X60.3 | AISI 316/316L | GAS |
| 4CE61X70 | RID. EC. A S. GR 139,7X60,3 S3 304 | 139X60.3 | AISI 304/304L | GAS |
| 6CE61X70 | RID. EC. A S. GR 139,7X60,3 S3 316 | 139X60.3 | AISI 316/316L | GAS |
| 4CE61X71 | RID. EC. A S. GR 139,7X76,1 S2 304 | 139.7X76.1 | AISI 304/304L | GAS |
| 6CE61X71 | RID. EC. A S. GR 139,7X76,1 S2 316 | 139.7X76.1 | AISI 316/316L | GAS |
| 4CE61X73 | RID. EC. A S. GR 139,7X88,9 S2 304 | 139.7X88.9 | AISI 304/304L | GAS |
| 6CE61X73 | RID. EC. A S. GR 139,7X88,9 S2 316 | 139.7X88.9 | AISI 316/316L | GAS |
| 6CE61X75 | RID. EC. A S. GR 139,7X101,6 S2 316 | 139.7X101.6 | AISI 316/316L | GAS |
| 6CE61X76 | RID. EC. A S. GR 139,7X101,6 S3 316 | 139.7X101.6 | AISI 316/316L | GAS |
| 4CE61X77 | RID. EC. A S. GR 139,7X114,3 S2 304 | 139.7X114.3 | AISI 304/304L | GAS |
| 4CE61X78 | RID. EC. A S. GR 139,7X114,3 S3 304 | 139.7X114.3 | AISI 304/304L | GAS |
| 6CE61XS9 | RID. EC. A S. GR. DIN 154X85 316 | 154X85 | AISI 316/316L | DIN |
| 4CE61XC8 | RID. EC. A S. GR. DIN 154X101,6 304 | 154X101.6 | AISI 304/304L | DIN |
| 6CE61XC8 | RID. EC. A S. GR. DIN 154X101,6 316 | 154X101.6 | AISI 316/316L | DIN |
| 4CE61XA1 | RID. ECC. A S. GR. DIN 154X104 304 | 154X104 | AISI 304/304L | DIN |
| 6CE61XA1 | RID. ECC. A S. GR. DIN 154X104 316 | 154X104 | AISI 316/316L | DIN |
| 6CE61XH1 | RID. ECC. A S. GR. DIN 154X129 316 | 154X129 | AISI 316/316L | DIN |
| 6CE61XD0 | RID. EC. A S. GR 168,3X48,3 S2 316 | 168.3X48.3 | AISI 316/316L | GAS |
| 4CE61X79 | RID. EC. A S. GR 168,3X60,3 S2 304 | 168.3X60.3 | AISI 304/304L | GAS |
| 6CE61X79 | RID. EC. A S. GR 168,3X60,3 S2 316 | 168.3X60.3 | AISI 316/316L | GAS |
| 6CE61X80 | RID. EC. A S. GR 168,3X60,3 S3 316 | 168.3X60.3 | AISI 316/316L | GAS |
| 6CE61X81 | RID. EC. A S. GR 168,3X76,1 S2 316 | 168.3X76.1 | AISI 316/316L | GAS |
| 4CE61X83 | RID. EC. A S. GR 168,3X88,9 S2 304 | 168.3X88.9 | AISI 304/304L | GAS |
| 6CE61X83 | RID. EC. A S. GR 168,3X88,9 S2 316 | 168.3X88.9 | AISI 316/316L | GAS |
| 4CE61X84 | RID. EC. A S. GR 168,3X88,9 S3 304 | 168.3X88.9 | AISI 304/304L | GAS |
| 6CE61X84 | RID. EC. A S. GR 168,3X88,9 S3 316 | 168.3X88.9 | AISI 316/316L | GAS |
| 4CE61X85 | RID. EC. A S. GR 168,3X101,6 S2 304 | 168.3X101.6 | AISI 304/304L | GAS |
| 6CE61X85 | RID. EC. A S. GR 168,3X101,6 S2 316 | 168.3X101.6 | AISI 316/316L | GAS |
| 4CE61X87 | RID. EC. A S. GR 168,3X114,3 S2 304 | 168.3X114.3 | AISI 304/304L | GAS |
| 6CE61X87 | RID. EC. A S. GR 168,3X114,3 S2 316 | 168.3X114.3 | AISI 316/316L | GAS |
| 4CE61X89 | RID. EC. A S. GR 168,3X139,7 S2 304 | 168.3X139.7 | AISI 304/304L | GAS |
| 4CE61X90 | RID. EC. A S. GR 168,3X139,7 S3 304 | 168.3X139.7 | AISI 304/304L | GAS |
| 6CE61XI6 | RID. ECC. A S. GR. 204X101,6 S2 316 | 204X101.6 | AISI 316/316L | DIN |
| 4CE61XC1 | RID. EC. A S. GR 219,1X88,9 S2 304 | 219.1X88.9 | AISI 304/304L | GAS |
| 6CE61XC1 | RID. EC. A S. GR 219,1X88,9 S2 316 | 219.1X88.9 | AISI 316/316L | GAS |
| 4CE61XB6 | RID. EC. A S. GR. 219X101,6 S2 304 | 219.1X101.6 | AISI 304/304L | GAS |
| 6CE61XB6 | RID. EC. A S. GR. 219X101,6 S2 316 | 219.1X101.6 | AISI 316/316L | GAS |
| 6CE61XE2 | RID. EC. A S. GR 219,1X114,3 S2 316 | 219.1X114.3 | AISI 316/316L | GAS |
| 4CE61XE5 | RID. EC. A S. GR 219,1X139,7 S2 304 | 219.1X139.7 | AISI 304/304L | GAS |
| 6CE61XE5 | RID. EC. A S. GR 219,1X139,7 S2 316 | 219.1X139.7 | AISI 316/316L | GAS |
| 4CE61XB7 | RID. EC. A S. GR 219,1X168,3 S2 304 | 219.1X168.3 | AISI 304/304L | GAS |
| 6CE61XB8 | RID. EC. A S. GR 219,1X168,3 S2 316 | 219.1X168.3 | AISI 316/316L | GAS |
| 6CE61XG1 | RID. EC. A S. GR 219,1X168,3 S3 316 | 219.1X168.3 | AISI 316/316L | GAS |
| 4CE61XC5 | RID. EC. A S. GR 273,0X168,3 S2 304 | 273.0X168.3 | AISI 304/304L | GAS |
| 6CE61XC5 | RID. EC. A S. GR 273,0X168,3 S2 316 | 273.0X168.3 | AISI 316/316L | GAS |
| 6CE61XH6 | RID. EC. A S. GR 323,9X219,1 S2 316 | 323.9X219.1 | AISI 316/316L | GAS |
Altre dimensioni/norme disponibili su richiesta.
Prodotti correlati
Prodotti correlati
-
Tee inox Ridotto a Mandrinare Lucido
Scegli Questo prodotto ha più varianti. Le opzioni possono essere scelte nella pagina del prodotto -
Curva 90° inox con Attacchi Maschio/Femmina DIN
Scegli Questo prodotto ha più varianti. Le opzioni possono essere scelte nella pagina del prodotto -
Curva 90° inox con Attacchi Femmina DIN
Scegli Questo prodotto ha più varianti. Le opzioni possono essere scelte nella pagina del prodotto -
Curva 45° inox a Saldare Lucida
Scegli Questo prodotto ha più varianti. Le opzioni possono essere scelte nella pagina del prodotto
